import numpy as np
import matplotlib.pyplot as plt
import climatecritters as cc
from climatecritters.model_critters.damped_spring import DampedSpring
from climatecritters.model_critters.pendulum import SimplePendulumPendulums and Damped Spring — Oscillatory Dynamics
Abstract
Three mechanical oscillators of increasing complexity: DampedSpring illustrates underdamped, critically damped, and overdamped regimes; SimplePendulum adds nonlinearity via the exact sin θ restoring force; and a driven pendulum demonstrates the period-doubling route to deterministic chaos. Together they establish core concepts of damping, resonance, and the transition from periodic to chaotic dynamics.
Keywords
DampedSpring, SimplePendulum, damping, underdamped, resonance, period-doubling, chaos, nonlinear, frequency response, driven pendulum
Overview
These three models form a natural family, all built on the same second-order oscillator skeleton:
restoring force + optional damping + optional drive
DampedSpring is the linear oscillator: restoring force \(kx\), analytic solution known for all damping regimes. This makes it the right starting point — resonance, phase lag, and the frequency-response curve are all clean and exact. The drive is registered via register_forcing rather than baked into the constructor.
SimplePendulum replaces \(kx\) with the nonlinear restoring torque \(\sin\theta\) — no small-angle approximation. Damping is optional; the undamped case conserves energy exactly. The nonlinearity means no closed-form solution exists for large amplitudes, and the model behaves qualitatively differently from the spring at large swings.
The driven pendulum adds a periodic cosine torque \(A\cos(\Omega t)\) to \(d\omega/dt\) via register_forcing. Because \(\sin\theta\) is nonlinear, this drive can push the system into deterministic chaos — something the spring, being linear, can never do. Period-doublings and a strange attractor appear as \(A\) increases.
All three share the same ClimateCritters API, use uses_post_history=True, and provide natural_frequency(), natural_period(), and damping_ratio() convenience methods.
Spring
DampedSpring: free decay
\[ \begin{aligned} \frac{dx}{dt} &= v \\ \frac{dv}{dt} &= -\frac{c}{m}\,v - \frac{k}{m}\,x + \frac{F(t)}{m} \end{aligned} \]
Linear restoring force \(kx\) makes this system analytically tractable — the exact solution for \(F=0\) is known for all damping regimes. Unlike the pendulum, there is no route to chaos for periodic \(F(t)\): the response is always periodic at the drive frequency plus a decaying transient.
Parameters
| Parameter | Description | Default |
|---|---|---|
m |
Mass (kg) | 1.0 |
k |
Spring constant (N/m) | 1.0 |
c |
Damping coefficient (N·s/m) | 0.1 |
F |
External force (N); can be a Forcing |
0.0 |
Diagnostics: energy (\(\frac{1}{2}mv^2 + \frac{1}{2}kx^2\)), omega_0 (\(\sqrt{k/m}\)).
Damping regimes
The damping ratio \(\zeta = c / (2\sqrt{km})\) classifies the qualitative response:
| \(\zeta\) | Regime | Behaviour |
|---|---|---|
| 0 | Undamped | Perpetual oscillation; energy conserved |
| \(0 < \zeta < 1\) | Underdamped | Decaying oscillations |
| \(\zeta = 1\) | Critically damped | Fastest non-oscillatory return to equilibrium |
| \(\zeta > 1\) | Overdamped | Slow non-oscillatory decay |
m_kg, k_spring = 1.0, 4.0 # ω₀ = 2 rad/s, T₀ = π ≈ 3.14 s
spring_under = DampedSpring(m=m_kg, k=k_spring, c=0.4)
spring_over = DampedSpring(m=m_kg, k=k_spring, c=4.5)
out_under = spring_under.integrate(t_span=(0, 20), y0=[1.0, 0.0], method='RK45')
out_over = spring_over.integrate(t_span=(0, 20), y0=[1.0, 0.0], method='RK45')
print(f'c=0.4 → ζ = {spring_under.damping_ratio():.3f} (underdamped)')
print(f'c=4.5 → ζ = {spring_over.damping_ratio():.3f} (overdamped)')
print(f'ω₀ = {spring_under.natural_frequency():.3f} rad/s, T₀ = {spring_under.natural_period():.3f} s')c=0.4 → ζ = 0.100 (underdamped)
c=4.5 → ζ = 1.125 (overdamped)
ω₀ = 2.000 rad/s, T₀ = 3.142 sfig, axes = plt.subplots(1, 2, figsize=(12, 4))
t_u = np.asarray(out_under.time)
t_o = np.asarray(out_over.time)
axes[0].plot(t_u, out_under.state_variables['x'], color='steelblue', lw=1.0, label='Underdamped (c=0.4)')
axes[0].plot(t_o, out_over.state_variables['x'], color='firebrick', lw=1.0, label='Overdamped (c=4.5)')
axes[0].axhline(0, color='k', lw=0.5, ls='--')
axes[0].set_xlabel('time (s)'); axes[0].set_ylabel('x (m)')
axes[0].set_title('Displacement — x(0)=1, v(0)=0')
axes[0].legend(fontsize=9)
axes[1].plot(t_u, out_under.diagnostic_variables['energy'], color='steelblue', lw=1.0, label='Underdamped')
axes[1].plot(t_o, out_over.diagnostic_variables['energy'], color='firebrick', lw=1.0, label='Overdamped')
axes[1].set_xlabel('time (s)'); axes[1].set_ylabel('Energy (J)')
axes[1].set_title('Mechanical energy (monotonically decays with damping)')
axes[1].legend(fontsize=9)
fig.suptitle(f'DampedSpring — free decay (m={m_kg} kg, k={k_spring} N/m)')
plt.tight_layout(); plt.show()

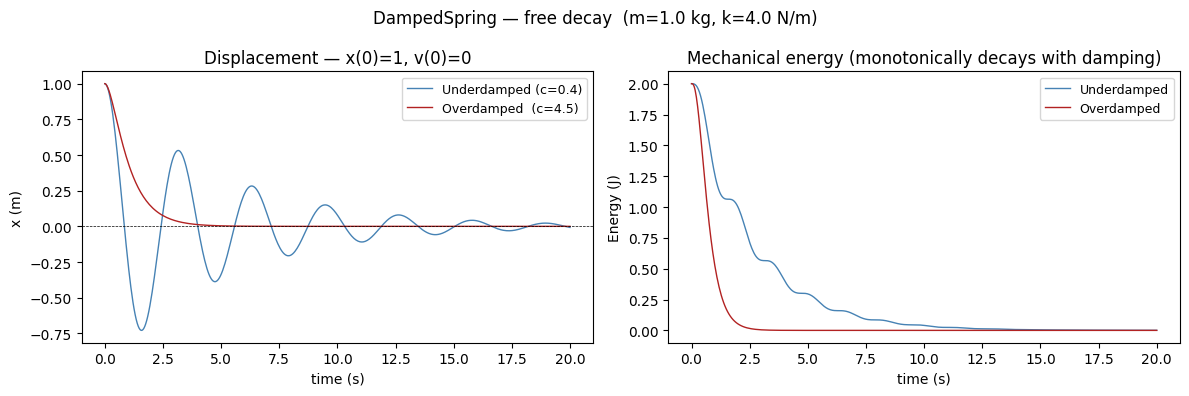

Figure. Left: displacement \(x(t)\) for four damping regimes starting from \(x_0=1\), \(v_0=0\). Underdamped (\(\zeta < 1\)) rings down through oscillations; critically damped returns to zero fastest without overshoot; overdamped creeps back slowly. Right: mechanical energy decays monotonically in all damped cases — the rate reflects \(\zeta\). Undamped energy is exactly constant (numerical error at the \(10^{-7}\) level).
DampedSpring: periodic drive and frequency response
\[ X(\omega_d) = \frac{F_0/m}{\sqrt{(\omega_0^2 - \omega_d^2)^2 + (c\,\omega_d/m)^2}} \]
At resonance (\(\omega_d = \omega_0\)) the denominator is minimised and the steady-state amplitude is largest. In the undamped limit the amplitude grows without bound (secular growth). Time-varying drives attach via register_forcing:
model.register_forcing('F', cc.Forcing(lambda t: F0 * np.cos(omega_d * t)))Sub-resonant, resonant, and super-resonant drive
omega0_s = np.sqrt(k_spring / m_kg) # = 2 rad/s
F0 = 1.0
c_drive = 0.4 # light damping — bounded resonant peak
drive_cases = [
(0.5 * omega0_s, f'Sub-resonant (ωd = ω₀/2 = {0.5*omega0_s:.2f})', 'steelblue'),
(omega0_s, f'Resonant (ωd = ω₀ = {omega0_s:.2f})', 'firebrick'),
(2.0 * omega0_s, f'Super-resonant(ωd = 2ω₀ = {2.0*omega0_s:.2f})', 'goldenrod'),
]
models_drv = []
for omega_d, label, color in drive_cases:
m = DampedSpring(m=m_kg, k=k_spring, c=c_drive)
m.register_forcing('F', cc.Forcing(lambda t, wd=omega_d: F0 * np.cos(wd * t)))
out = m.integrate(t_span=(0, 60), y0=[0.0, 0.0], method='RK45')
models_drv.append(out)
# steady-state amplitude (post-transient mean peak)
t_arr = np.asarray(out.time)
x_ss = out.state_variables['x'][t_arr > 30]
print(f'{label} → max|x|_ss = {np.max(np.abs(x_ss)):.3f} m')Sub-resonant (ωd = ω₀/2 = 1.00) → max|x|_ss = 0.331 m
Resonant (ωd = ω₀ = 2.00) → max|x|_ss = 1.250 m
Super-resonant(ωd = 2ω₀ = 4.00) → max|x|_ss = 0.083 mfig, axes = plt.subplots(3, 1, figsize=(11, 7), sharex=True)
for ax, out, (omega_d, label, color) in zip(axes, models_drv, drive_cases):
t = np.asarray(out.time)
ax.plot(t, out.state_variables['x'], lw=0.8, color=color)
ax.axhline(0, color='k', lw=0.4, ls='--')
ax.set_ylabel('x (m)', fontsize=9)
ax.set_title(label, fontsize=10)
axes[-1].set_xlabel('time (s)')
fig.suptitle(f'DampedSpring — driven at different frequencies (c={c_drive}, F₀={F0})')
plt.tight_layout(); plt.show()

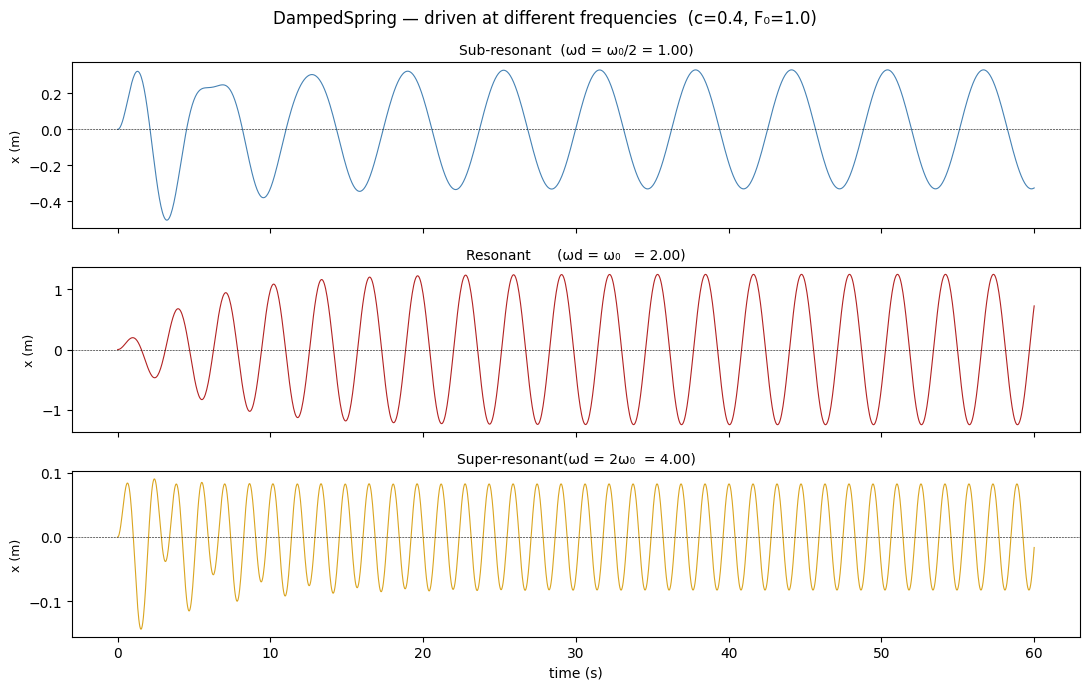

Figure. Displacement \(x(t)\) for drive frequencies below, at, and above natural frequency \(\omega_0 = 2\) rad/s. Sub-resonant: small in-phase oscillations. Resonant: amplitude grows during the transient before settling to the largest steady-state value. Super-resonant: small out-of-phase oscillations — the mass can’t follow the fast drive.

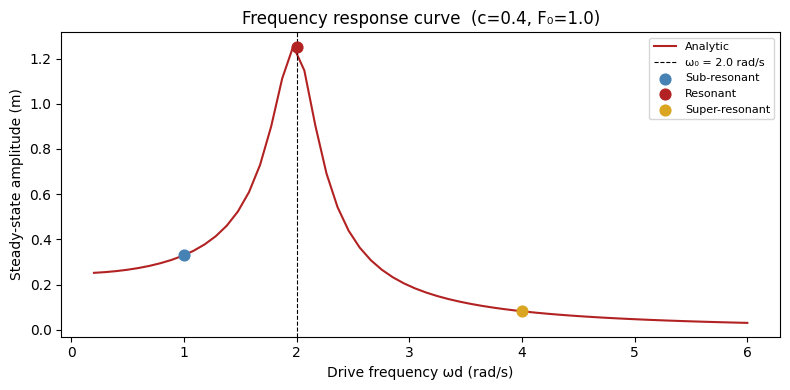

Resonance curve: steady-state amplitude vs drive frequency
omega_d_vals = np.linspace(0.2, 6.0, 60)
# Analytic steady-state amplitude
X_analytic = (F0 / m_kg) / np.sqrt(
(omega0_s**2 - omega_d_vals**2)**2 + (c_drive * omega_d_vals / m_kg)**2
)
fig, ax = plt.subplots(figsize=(8, 4))
ax.plot(omega_d_vals, X_analytic, color='firebrick', lw=1.5, label='Analytic')
ax.axvline(omega0_s, color='k', lw=0.8, ls='--', label=f'\u03c9\u2080 = {omega0_s:.1f} rad/s')
# Overlay the three numerical steady-state points
for out, (omega_d, label, color) in zip(models_drv, drive_cases):
t_arr = np.asarray(out.time)
x_ss = out.state_variables['x'][t_arr > 30]
ax.scatter([omega_d], [np.max(np.abs(x_ss))], color=color, s=60, zorder=5,
label=label.split('(')[0].strip())
ax.set_xlabel('Drive frequency \u03c9d (rad/s)')
ax.set_ylabel('Steady-state amplitude (m)')
ax.set_title(f'Frequency response curve (c={c_drive}, F\u2080={F0})')
ax.legend(fontsize=8)
plt.tight_layout(); plt.show()
Pendulum
SimplePendulum
\[ \begin{aligned} \frac{d\theta}{dt} &= \omega \\ \frac{d\omega}{dt} &= -\lambda\,\omega - \omega_0^2\,\sin\theta, \qquad \omega_0 = \sqrt{g/L} \end{aligned} \]
No small-angle approximation — the restoring torque is the exact \(\sin\theta\). Setting damping=0 gives the conservative nonlinear pendulum; energy is then an exact constant of motion.
Parameters
| Parameter | Description | Default |
|---|---|---|
L |
Rod length (m) | 1.0 |
g |
Gravitational acceleration (m/s²) | 9.81 |
damping |
Linear damping coefficient \(\lambda\) (s⁻¹) | 0.0 |
Diagnostics: energy (\(\frac{1}{2}(L\omega)^2 + gL(1-\cos\theta)\)), omega_0 (\(\sqrt{g/L}\)).
Damping regimes
The damping ratio \(\zeta = \lambda / (2\omega_0)\) classifies the response (same regimes as the spring):
| \(\zeta\) | Regime | Behaviour |
|---|---|---|
| 0 | Undamped | Perpetual oscillation; energy conserved |
| \(0 < \zeta < 1\) | Underdamped | Decaying oscillations |
| \(\zeta = 1\) | Critically damped | Fastest non-oscillatory return |
| \(\zeta > 1\) | Overdamped | Slow non-oscillatory decay |
# L=1 m, g=9.81 m/s² → ω₀ ≈ 3.13 rad/s, T₀ ≈ 2.01 s
L, g = 1.0, 9.81
omega0 = np.sqrt(g / L)
lam_crit = 2.0 * omega0 # critical damping: λ = 2ω₀
damping_cases = [
(0.0, 'Undamped (ζ=0)', 'steelblue'),
(1.0, f'Underdamped (ζ={1.0/(2*omega0):.2f})', 'seagreen'),
(lam_crit, 'Critically damped (ζ=1)', 'firebrick'),
(2*lam_crit, 'Overdamped (ζ=2)', 'goldenrod'),
]
theta0 = np.pi / 2 # 90° — large enough to show nonlinear effects
models_sp = []
for lam, label, _ in damping_cases:
m = SimplePendulum(L=L, g=g, damping=lam)
out = m.integrate(t_span=(0, 10), y0=[theta0, 0.0], method='RK45')
models_sp.append(out)
# Convenience helpers
m_ex = SimplePendulum(L=L, g=g, damping=lam_crit)
print(f'ω₀ = {m_ex.natural_frequency():.3f} rad/s')
print(f'T₀ = {m_ex.natural_period():.3f} s (small-angle)')
print(f'ζ = {m_ex.damping_ratio():.3f} (critical → ζ=1)')ω₀ = 3.132 rad/s
T₀ = 2.006 s (small-angle)
ζ = 1.000 (critical → ζ=1)fig, axes = plt.subplots(1, 2, figsize=(12, 4), sharex=True)
for out, (lam, label, color) in zip(models_sp, damping_cases):
t = np.asarray(out.time)
axes[0].plot(t, np.degrees(out.state_variables['theta']), lw=1.0, color=color, label=label)
axes[1].plot(t, out.diagnostic_variables['energy'], lw=1.0, color=color)
axes[0].set_xlabel('time (s)'); axes[0].set_ylabel('θ (°)')
axes[0].set_title('Angle vs time')
axes[0].legend(fontsize=8)
axes[1].set_xlabel('time (s)'); axes[1].set_ylabel('Energy (J kg⁻¹)')
axes[1].set_title('Mechanical energy (conserved iff undamped)')
fig.suptitle(f'SimplePendulum — damping regimes (θ₀=90°, L={L} m, g={g} m/s²)')
plt.tight_layout(); plt.show()

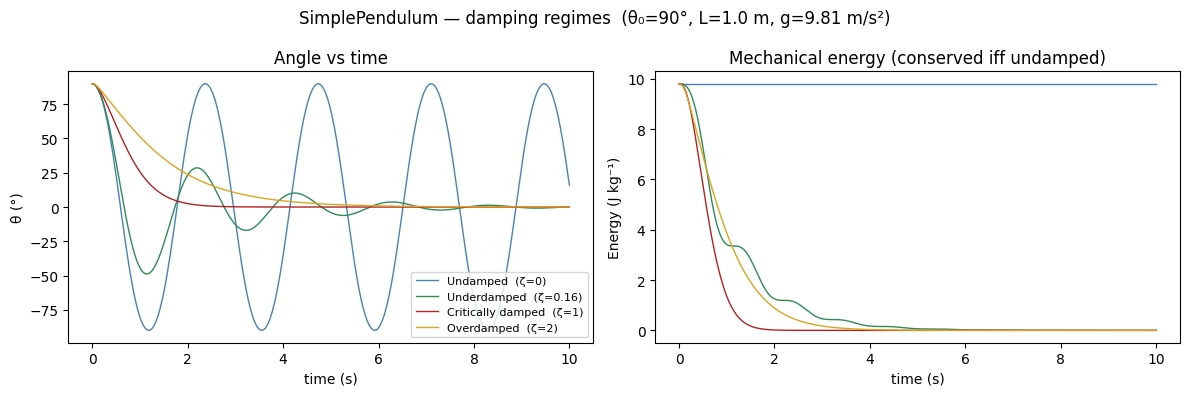

Figure. Left: \(\theta(t)\) for four damping regimes starting from \(\theta_0 = 90°\). The large initial angle means nonlinear effects are visible — the undamped period is longer than the small-angle prediction \(T_0 = 2\pi/\omega_0\). Right: energy is exactly conserved for the undamped case; damped cases decay at rates set by \(\zeta\).
Driven Pendulum
Dimensionless form (\(g = L = m = 1\), so \(\omega_0 = 1\)):
\[ \begin{aligned} \frac{d\theta}{dt} &= \omega \\ \frac{d\omega}{dt} &= -q\,\omega - \sin\theta + A\cos(\Omega t) \end{aligned} \]
The \(\sin\theta\) nonlinearity is what distinguishes this from the spring — it allows the periodic drive to push the system into chaos. The spring’s linear \(kx\) restoring force can never produce a strange attractor, no matter how large the drive.
Parameters and implementation
| Parameter | Description | Value used |
|---|---|---|
q |
Damping coefficient | 0.5 |
A |
Drive amplitude | 0.5 / 1.07 / 1.2 |
Omega |
Drive frequency | 2/3 |
The drive is attached to SimplePendulum via additive forcing on \(\omega\):
m = SimplePendulum(L=1.0, g=1.0, damping=q)
m.register_forcing('omega',
cc.Forcing(lambda t, A=A_val: A * np.cos(Omega * t)),
'additive', timing='pre')Route to chaos (q=0.5, Ω=2/3)
q, Omega = 0.5, 2.0 / 3.0
A_cases = [(0.5, 'Period-1 (A=0.5)', 'steelblue'),
(1.07, 'Period-2 (A=1.07)', 'goldenrod'),
(1.2, 'Chaos (A=1.2)', 'firebrick')]
models_dp = []
for A_val, _, _ in A_cases:
m = SimplePendulum(L=1.0, g=1.0, damping=q)
m.register_forcing('omega',
cc.Forcing(lambda t, A=A_val: A * np.cos(Omega * t)),
'additive', timing='pre')
out = m.integrate(t_span=(0, 300), y0=[0.0, 0.0], method='RK45')
models_dp.append(out)# Post-transient only (t > 150)
fig, axes = plt.subplots(3, 1, figsize=(11, 7), sharex=False)
for ax, out, (A_val, label, color) in zip(axes, models_dp, A_cases):
t = np.asarray(out.time)
mask = t >= 150.0
ax.plot(t[mask], np.degrees(out.state_variables['theta'][mask]),
lw=0.7, color=color)
ax.set_ylabel('θ (°)', fontsize=9)
ax.set_title(label, fontsize=10)
axes[-1].set_xlabel('time (dimensionless)')
fig.suptitle(f'Driven Pendulum — route to chaos (q={q}, Ω={Omega:.3f})')
plt.tight_layout(); plt.show()

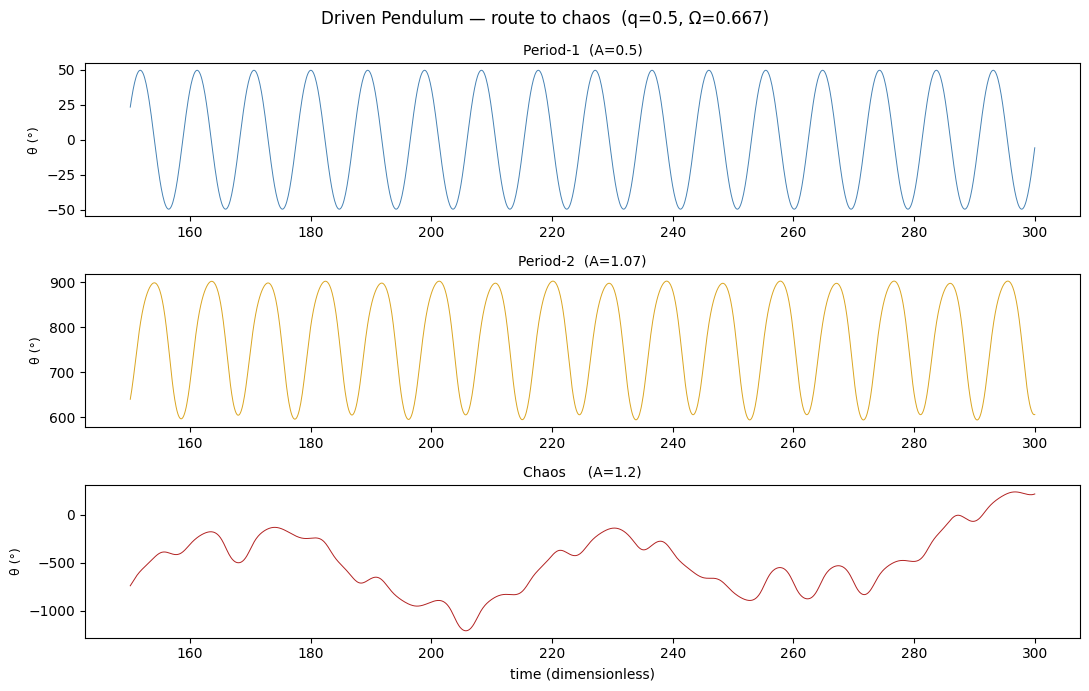

Figure. Post-transient \(\theta(t)\) for three drive amplitudes. Period-1 (\(A=0.5\)): steady oscillation at the drive frequency. Period-2 (\(A=1.07\)): every other cycle is slightly different — the period has doubled. Chaos (\(A=1.2\)): no cycle ever repeats; the system has passed through the full period-doubling cascade to a strange attractor.

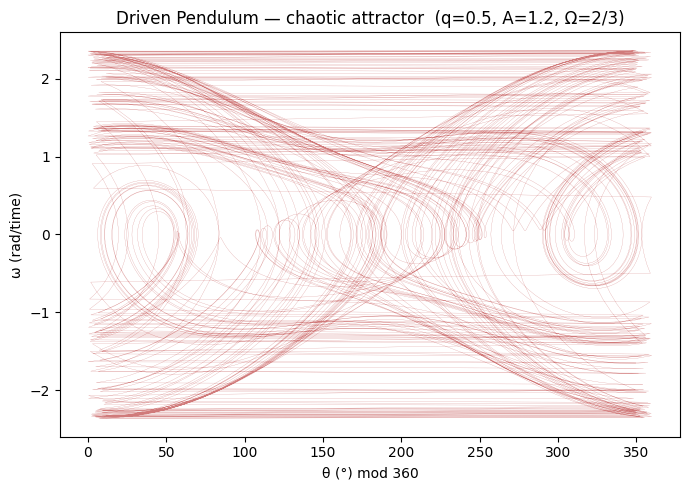

Phase portrait — chaotic attractor (A=1.2)
# Long run to fill the attractor
m_chaos = SimplePendulum(L=1.0, g=1.0, damping=q)
m_chaos.register_forcing('omega',
cc.Forcing(lambda t: 1.2 * np.cos(Omega * t)),
'additive', timing='pre')
out_chaos = m_chaos.integrate(t_span=(0, 1000), y0=[0.0, 0.0], method='RK45')
t_c = np.asarray(out_chaos.time)
mask_c = t_c > 100.0 # discard transient
theta_c = out_chaos.state_variables['theta'][mask_c]
omega_c = out_chaos.state_variables['omega'][mask_c]
fig, ax = plt.subplots(figsize=(7, 5))
ax.plot(np.degrees(theta_c) % 360, omega_c, lw=0.15, color='firebrick', alpha=0.6)
ax.set_xlabel('θ (°) mod 360'); ax.set_ylabel('ω (rad/time)')
ax.set_title('Driven Pendulum — chaotic attractor (q=0.5, A=1.2, Ω=2/3)')
plt.tight_layout(); plt.show()
Solver notes
RK45 is appropriate for all models at default parameters. None are stiff.
uses_post_history=True on all models. Diagnostics (energy, omega_0, drive) are computed by replaying the full state history after integration.
DampedSpring takes any (t) callable via register_forcing. Use the default-argument capture idiom when building several models in a loop:
for wd in drive_freqs:
m = DampedSpring(...)
m.register_forcing('F', cc.Forcing(lambda t, wd=wd: F0 * np.cos(wd * t)))The driven pendulum is implemented as SimplePendulum(L=1, g=1, damping=q) with register_forcing('omega', Forcing(lambda t, A=A: A*cos(Ω*t)), 'additive', timing='pre'). Use the default-argument capture A=A_val in the lambda when building models in a loop — without it, all models will close over the final value of A_val.
Energy is not conserved in driven or damped cases. The energy diagnostic records instantaneous mechanical energy; in a driven system it fluctuates at the drive frequency in steady state.
