core.forcing.Harmonic

core.forcing.Harmonic(
    duration,
    period,
    A,
    center=None,
    y0=None,
    plot_kwargs=None,
)

Sinusoidal segment with automatic phase continuity.

The phase at the start of the segment is computed so that the sinusoid passes through y0 (or the previous segment’s endpoint), ensuring a smooth join when embedded in a ForcingSequence.

Parameters

duration : float: Length of the segment. Must be > 0.
period : float: Period of the sinusoid in model time units. Must be > 0.
A : float: Amplitude. Must be non-zero.
center : float = None: Mean value (vertical offset) of the sinusoid. If omitted, the mean is inferred from y0 such that the sinusoid oscillates symmetrically about the starting value.
y0 : float = None: Starting value. If omitted, inherits from the previous segment’s endpoint. At least one of y0 or center must be provided (or a previous segment must exist).

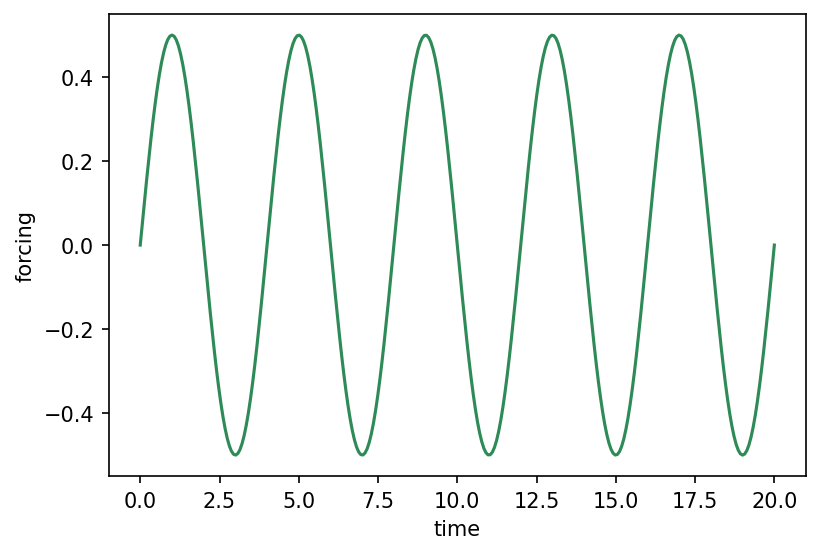

Examples

import matplotlib.pyplot as plt
import climatecritters as cc

h = cc.forcing.Harmonic(duration=20, period=4.0, A=0.5, center=0.0)
fig, ax = h.plot()
plt.savefig('docs/reference/figures/Harmonic_example.png',
            dpi=150, bbox_inches='tight')
