utils.forcing.create_piecewise_forcing

utils.forcing.create_piecewise_forcing(elements, label='forcing')

Build a piecewise forcing from a sequence of :class:~climatecritters.core.ForcingElement parts.

Compiles the sequence immediately and returns a callable :class:~climatecritters.core.Forcing.

Parameters

elements : sequence of ForcingElement

Ordered :class:~climatecritters.core.Hold, :class:~climatecritters.core.Ramp, :class:~climatecritters.core.Harmonic, or general :class:~climatecritters.core.ForcingElement instances.

label : str = 'forcing'

Human-readable label. Default 'forcing'.

Returns

forcing : Forcing

Examples

import matplotlib.pyplot as plt
import climatecritters as cc
from climatecritters.utils.forcing import create_piecewise_forcing

f = create_piecewise_forcing([
    cc.forcing.Hold(duration=50,  value=0.0),
    cc.forcing.Ramp(duration=100, y0=0.0, yf=4.0),
    cc.forcing.Hold(duration=50,  value=4.0),
], label="CO2 ramp")
fig, ax = f.plot()
ax.set_xlabel('time'); ax.set_ylabel('forcing')
plt.savefig('docs/reference/figures/create_piecewise_forcing_example.png',
            dpi=150, bbox_inches='tight')

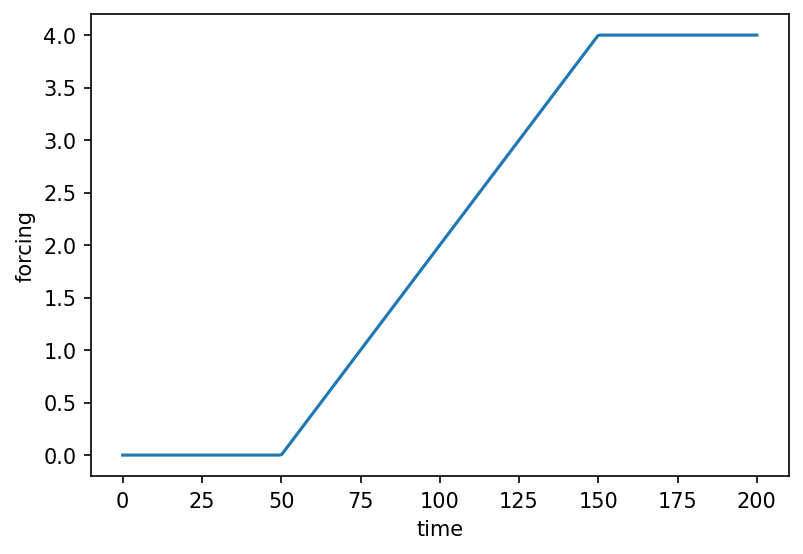

create_piecewise_forcing example output
